FIA680

The Migibio FIA680 is a single-channel veterinary immunofluorescence quantitative analyzer engineered for point-of-care (POCT) diagnostics. It delivers rapid, precise, and fully quantitative results for a broad panel of canine and feline biomarkers.

Key Features

• Single-channel fluorescence immunoassay detection

• Results in as fast as 3–11 minutes

• High sensitivity down to pg/ml (LOD)

• Excellent precision (CV% < 10%)

• Throughput of up to 200 tests per hour

• Multilingual interface (Chinese, English, Russian, Italian)

• Cloud chip technology for standard-curve download and custom reference ranges

• Built-in thermal printer for instant results

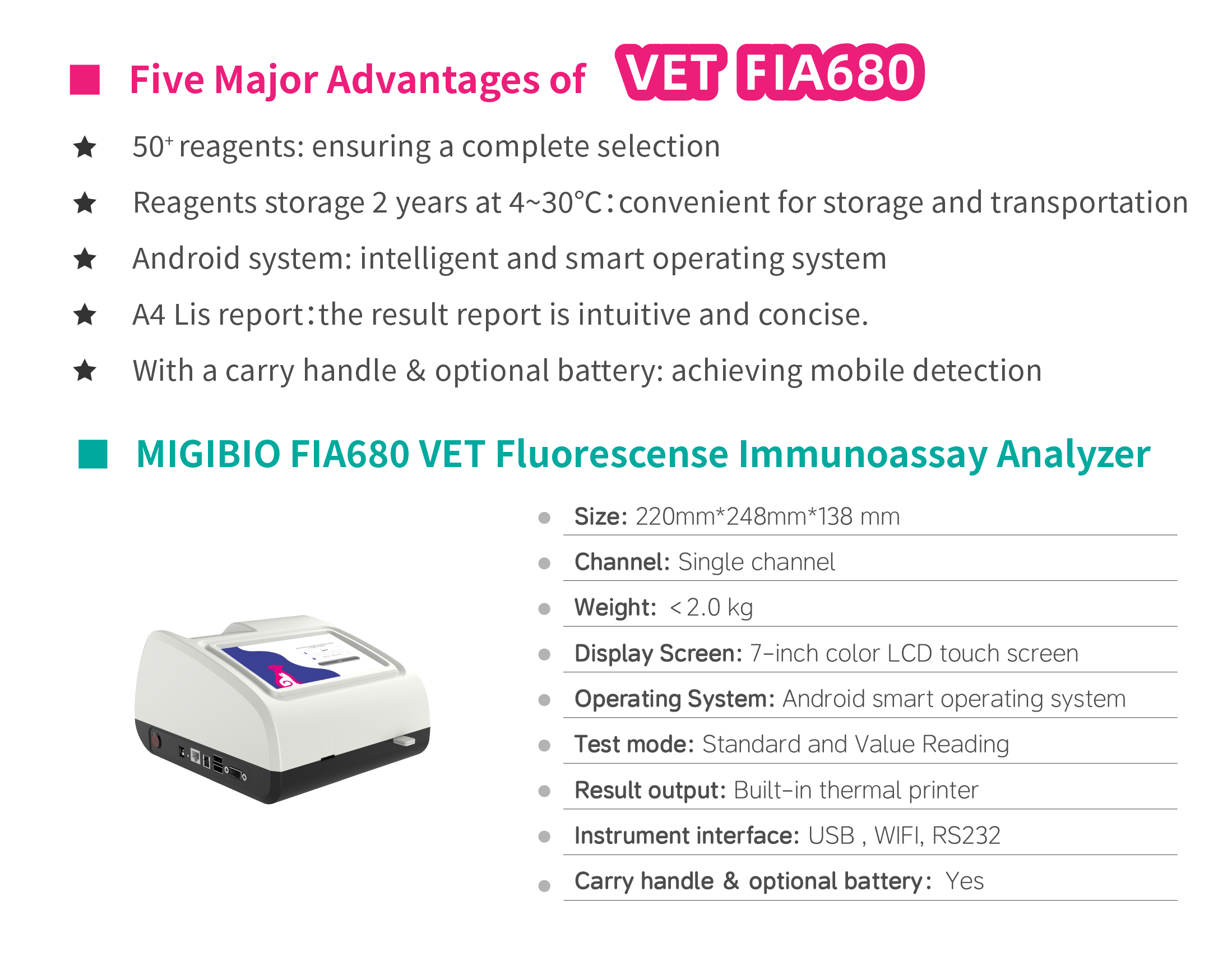

Technical Specifications

Parameter	Specification
Channels	Single-channel
Detection method	Fluorescence immunoassay
Result time	3–11 minutes
Sensitivity	pg/ml (LOD)
Precision	CV% < 10%
Throughput	Up to 200 tests/hour
Languages	Chinese, English, Russian, Italian
Printer	Built-in thermal printer
Connectivity	Wi-Fi (cloud standard curves)

Applications

Suitable for veterinary clinics, animal hospitals, breeding facilities, and on-site farm diagnostics — covering infectious disease antigen/antibody panels, hormones, and inflammatory markers.

Technical Highlights

• Three-step operation for minimal training

• Cloud standard curves — recover lost ID chips over Wi-Fi

• Online software updates

• A4 report generation with hospital branding

How FICT Delivers Quantitative Results

The FIA680 is built on Migibio’s proprietary Fluorescence Immunochromatographic Technology (FICT). Fluorescent microspheres labelled with analyte-specific antibodies bind to the target biomarker in the specimen and migrate along a nitrocellulose membrane. The analyzer excites the captured fluorophores and converts the emitted fluorescence intensity into an objective concentration (reported in Tu/ml, µg/dL, or ng/ml depending on the analyte).

Because fluorescence intensity is directly proportional to analyte concentration, the FIA680 delivers a true quantitative result — not a subjective line reading. This underpins the analyzer’s pg/ml-level sensitivity and CV% below 10% precision, enabling clinicians to track trends and titrate therapy with confidence.

FIA680 vs. FIA880: Which Analyzer Fits Your Practice?

Capability	FIA680 (Single-Channel)	FIA880 (Six-Channel)
Parallel samples	1 at a time	6 simultaneously
Throughput	Up to 200 tests/hour	Up to 300 tests/hour
Ideal for	Small clinics, mobile vets	Hospitals, reference labs
Footprint	Compact, portable	Larger, benchtop

Choose the FIA680 for cost-effective point-of-care testing in a lower-volume setting. Choose the FIA880 when multiple clinicians run tests concurrently and queuing would slow workflow.

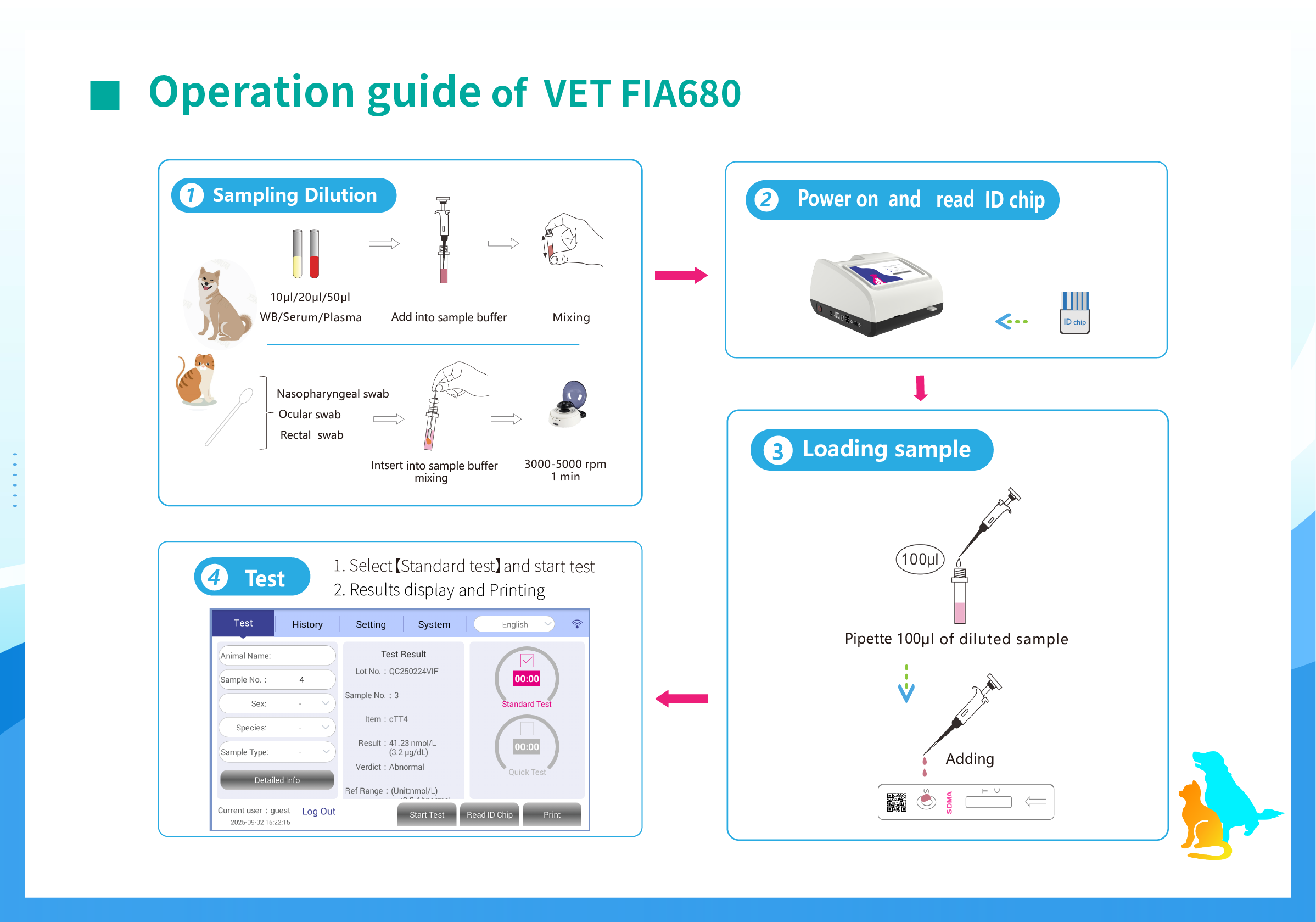

Three-Step Operation

1. Add sample — apply the prepared specimen to the test device.
2. Insert device — place the device into the analyzer and select the test item.
3. Read result — the analyzer reads the ID chip, counts down, and displays the quantitative result, printing automatically.

Reagent Compatibility

The FIA680 is compatible with Migibio’s full range of fluorescence immunochromatographic reagents — canine and feline infectious disease antigens/antibodies, hormones, inflammatory markers, and kidney/cardiac biomarkers. A single analyzer covers an entire diagnostic menu.
